SM Mode Field Assembly Optical Connector UPC / APC 250 μM Coating Diameter

Product Categories

Optic Network Technology Co., Ltd.

Contact Now

Model Number : ESC45F-UPC/APC

Place of Origin : Zhejiang,China

MOQ : 50 pcs

Payment Terms : T/T

Delivery Time : in one week

Cable Scope : 3.0 x 2.0 mm Drop Cable

Fiber Diameter : 125μm ( 652 & 657 )

Coating Diameter : 250μm

Mode : SM

Operation Time : about 15s（exclude fiber presetting)

Insertion Loss : ≤ 0.3dB（1310nm & 1550nm)

Return Loss : ≤ -45dB for UPC, ≤ 50dB for APC

Success Rate : >98%

Contact Now

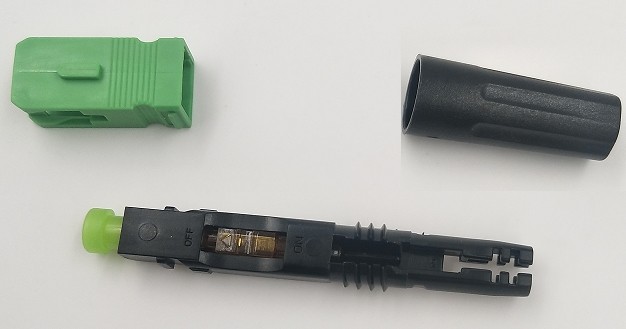

Mechanical Fiber Optic Connector-Fiber Pre-embeded Tech, Field Installable Fiber Optic Connector UPC/APC

Mechanical Fiber Optic Connector-Fiber Pre-embeded Tech

ESC45F-UPC/APC

SM Mode Field Assembly Optical Connector UPC / APC 250 μM Coating Diameter

Item	Parameter
Cable Scope	3.0 x 2.0 mm Drop Cable

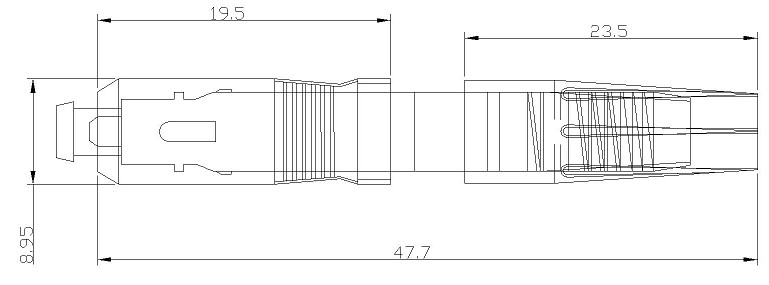

Size:	Please refer to the above
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.3dB(1310nm & 1550nm)
Return Loss	≤ -45dB for UPC, ≤ 50dB for APC
Success Rate	>98%
Reusable Times	>5 times
Tensile Strength	>30 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test	IL ≤ 0.3dB

Relevant Solutions

Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.
With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.
Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
